How Does a Metal Selector Switch Work?
2026-03-10
Summary: Metal selector switches are essential components in industrial and commercial control panels. They allow users to select various circuit states through a durable, multi-position mechanism. This article explores their operation, features, applications, and benefits, providing detailed guidance for buyers and engineers.
Table of Contents
- Introduction to Metal Selector Switches
- Key Components and Materials
- How a Metal Selector Switch Operates
- Technical Specifications
- Applications in Industry
- Maintenance Tips
- Frequently Asked Questions
- Conclusion and Contact

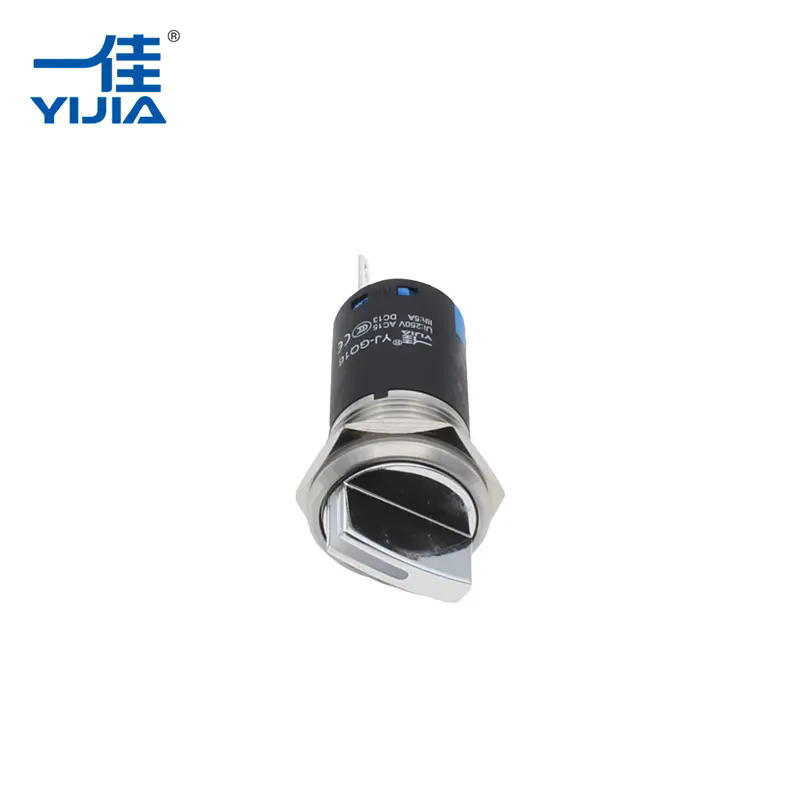

Introduction to Metal Selector Switches
A metal selector switch is a rotary device used to control electrical circuits by selecting different positions. Unlike standard push-button switches, it allows multiple positions, with each position corresponding to a unique electrical command. These switches are widely used in industrial control panels, machinery, and automation systems.
YIJIA specializes in manufacturing high-quality metal selector switches with over 20 years of experience. Their switches are known for durability, precision, and reliability.
Key Components and Materials
The main components of a metal selector switch include:
- Housing: Typically made from stainless steel or brass for high impact resistance.
- Rotary Knob/Lever: Provides tactile feedback and easy rotation between positions.
- Contacts: Usually silver alloy for high conductivity and long service life.
- Spring Mechanism: Ensures precise position retention and smooth operation.
- Insulation Materials: High-grade engineering plastics to prevent electrical hazards.
These materials ensure that the switch resists wear, aging, and environmental stress.
How a Metal Selector Switch Operates
Metal selector switches operate using a rotary mechanism. The user rotates the knob or lever to select a desired position. Each position corresponds to a specific circuit connection:
- Two-position switches: Often used for simple ON/OFF applications.
- Three-position switches: Allow an intermediate state for complex control.
- Multi-position switches: Enable selection among multiple functions in a single panel.
The internal contact structure uses a spring mechanism and silver alloy contacts, providing reliable performance under high-current conditions. The durable metal housing protects internal components and prolongs service life.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Stainless Steel, Brass, Aluminum Alloy |
| Positions | 2, 3, or Multi-position |
| Rated Voltage | AC/DC 220V, 380V |
| Rated Current | Up to 10A |
| Insulation Resistance | ≥100 MΩ |
| Operating Temperature | -20°C to 70°C |
Applications in Industry
Metal selector switches are versatile and used across many industries:
- Industrial automation systems for machinery control
- Electrical control panels in factories
- HVAC systems for selecting operational modes
- Power distribution equipment
- Marine and transportation controls
Their robust construction makes them ideal for environments requiring high reliability and low maintenance.
Maintenance Tips
Proper maintenance ensures long-term reliability:
- Regularly inspect for wear or corrosion on the metal housing and contacts.
- Clean the rotary knob and surrounding area to prevent dust buildup.
- Test electrical continuity periodically to ensure proper function.
- Lubricate the moving parts if recommended by the manufacturer.
- Replace worn components promptly to avoid operational failures.
Frequently Asked Questions
- Q1: Can a metal selector switch be customized?
- A1: Yes, YIJIA offers OEM and ODM options for custom positions, colors, and contact ratings.
- Q2: What is the typical lifespan of a metal selector switch?
- A2: With proper maintenance, these switches can last over 100,000 operational cycles.
- Q3: Are metal selector switches suitable for high-current applications?
- A3: Yes, with silver alloy contacts and reinforced contact mechanisms, they can handle currents up to 10A safely.
Conclusion and Contact
Metal selector switches provide reliable, durable, and precise control for various industrial and commercial applications. YIJIA’s high-quality switches are designed to meet demanding operational environments, offering long-term service with minimal maintenance.
For more information, inquiries, or to place an order, contact us today and discover how YIJIA can meet your switch requirements.
