Greenpedel Electric Bicycle Kit 36V 500W
Greenpedel Electric Bicycle Kit 36V 500WSpecificationMotor 36V/500W-1000W Front/Rear direct motor NEW Design (Model : GP-D27) Brushless direct hub motor Spoked with double-wall Aluminum rim,with eyelets. V Brake/ Disc brake available Rated speed=42KM/H. Load≤200KG Motor ......
Send Inquiry
Product Description
Specification

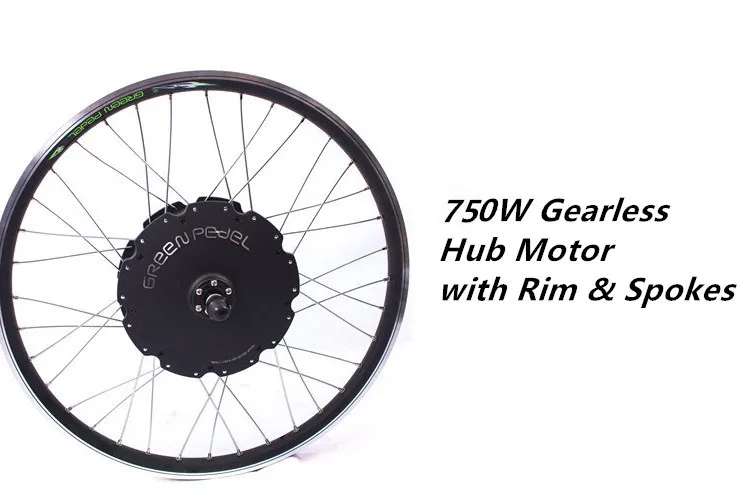

| Motor | 36V/500W-1000W Front/Rear direct motor NEW Design (Model : GP-D27)
|

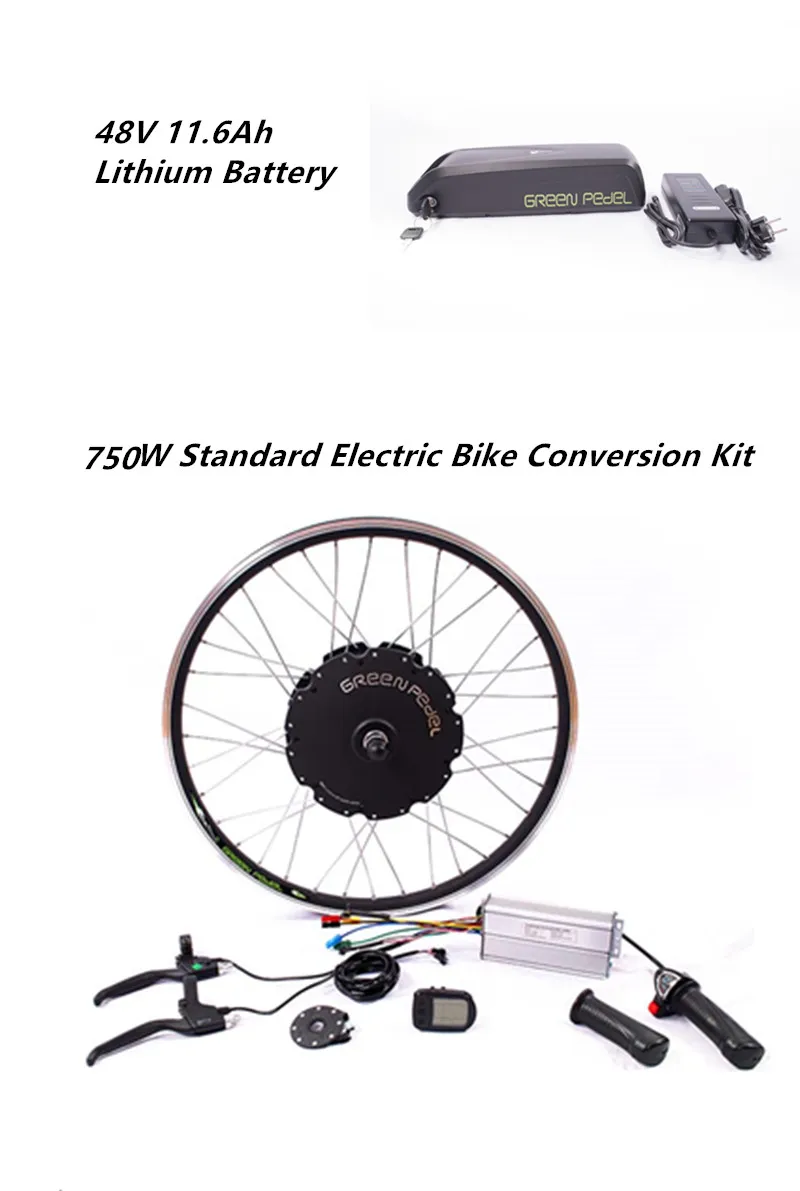

| Battery | 48V/11.6AH lithium-ion battery (Samsung 29E) |
| All battery including fuse and BMS. | |
| Charger | AC 100V -240V 2amps smart charger |

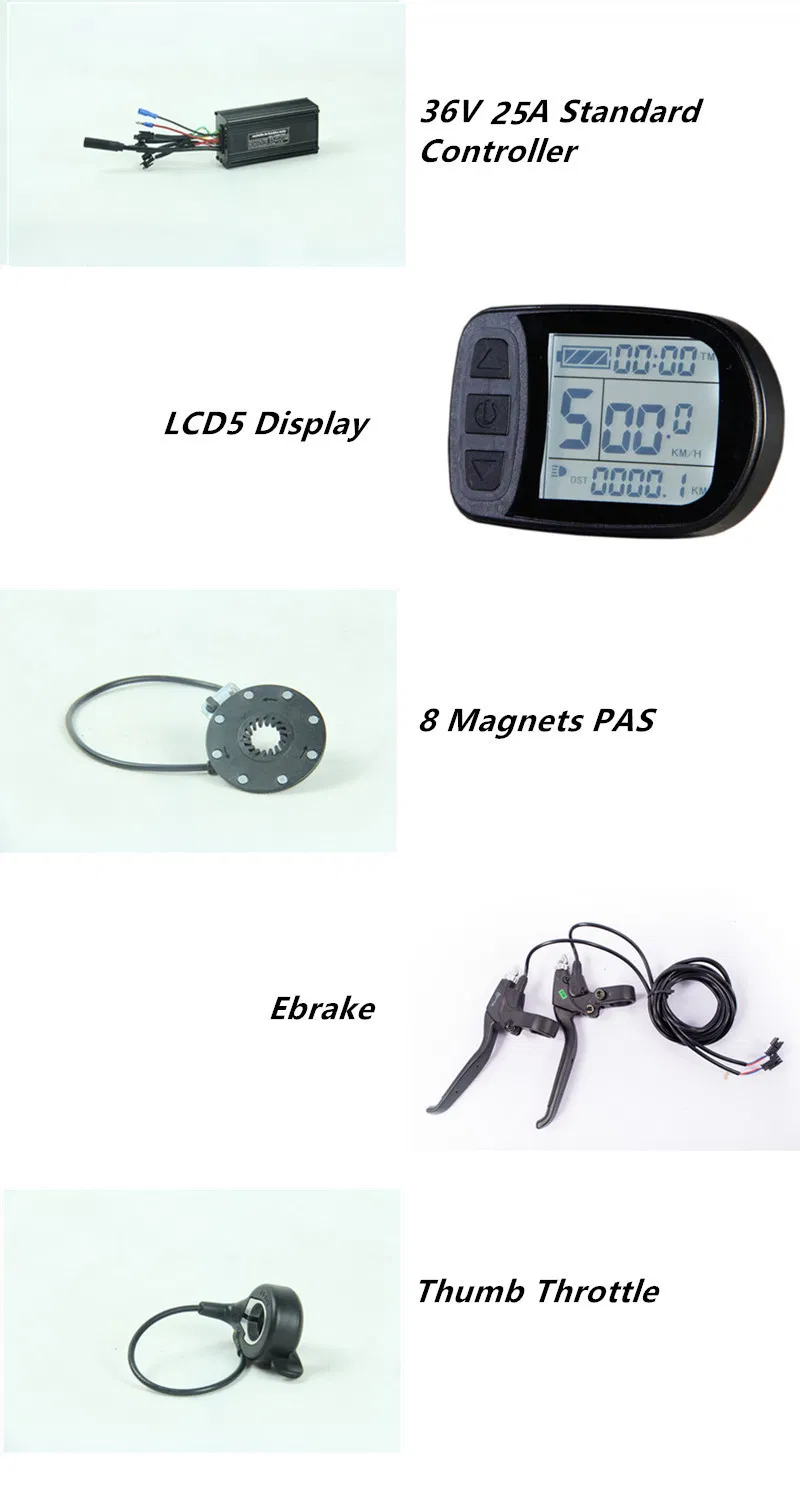

| Controller | 48V/22A-30A intelligent brushless controller,low voltage protection =42V |
| PAS | 1:1 intelligent pedal assistant system.( 12 points magnet) |
| Display | LED /LCD Display for option |
| Throttle | Thumb throttle/Twist throttle for option |
| Braking | E-brakes levers OR E-brake sensor for motor power cut off. |
| wiring | Waterproof harness or regular connection(Bullet/PP30 for motor and JST/DJ2.8 for other electric parts) |
| 500W-750W Front/Rear Geared motor NEW Design | |||
| (Model : GP-D27) | |||
| Rated Voltage (V) | 24/36/48 | Cable Location | Shaft center right |
| Rated Power (W) | 500-750 | Spoke Specification | 12g/13g |
| Wheel Size | 20--28 | Hall Sensor | Optional |
| Rated Speed (km/h) | 32 | Integrate speed sensor | Optional |
| Rated Efficiency (%) | >=80 | Surface | Black/Silver |
| Reduction Ratio | Brake Type | Disc brake/V brake | |
| Weight (Kg) | 6 | Salt fog test (h) | 24/96 |
| Open Size (mm) | Front:100 | Noise (db) | < 60db |
| Rear: 135-142 | |||
| Drive and Freewheel | 6-7s | Waterproof Grade | IP54 |
Our Service
1.Warranty :motor is 3years ,battery is 2 years,other ebike parts are 1 year.
2.OEM &ODM are available as customers demand.
3.We have professional team on ebike parts ,10years working experience engineers and sales .
4.Workers are well trained ,testing every single parts before packing.
5.Sales reply to you within 24hours .online time is long ,easy to contact .
6.After service is fast ,send replacement parts as soon as you send fault parts to check.
Company Information
Changzhou Green pedel Co.,Ltd is a professional and scientific enterprise that specialises in researching, producing and selling electric bicycles,electric scooters, K-Shaped cars, Shilly-cars and conversion kits. We ensure the quality of the first-class production equipment and the international standard operating procedures, as well as the professional operating staff. We always uphold the priciples of "quality first , integrity first, and reputation first. " In the past 7 years, our customers vary from government to industrial organizations, from distributors to retailers.
Certification
FAQ
Q1: What are the payment items?
A: We usually accept payment by T/T L/C or Western Union.
Q2: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certifiable company(VIP), and we support standard payment items like T/T L/C to ensure your safety.
Q3: How to make the order?
A: You have four ways to contact us to make the order: by e-mail, by Skype, by phone and by Trademanager.
