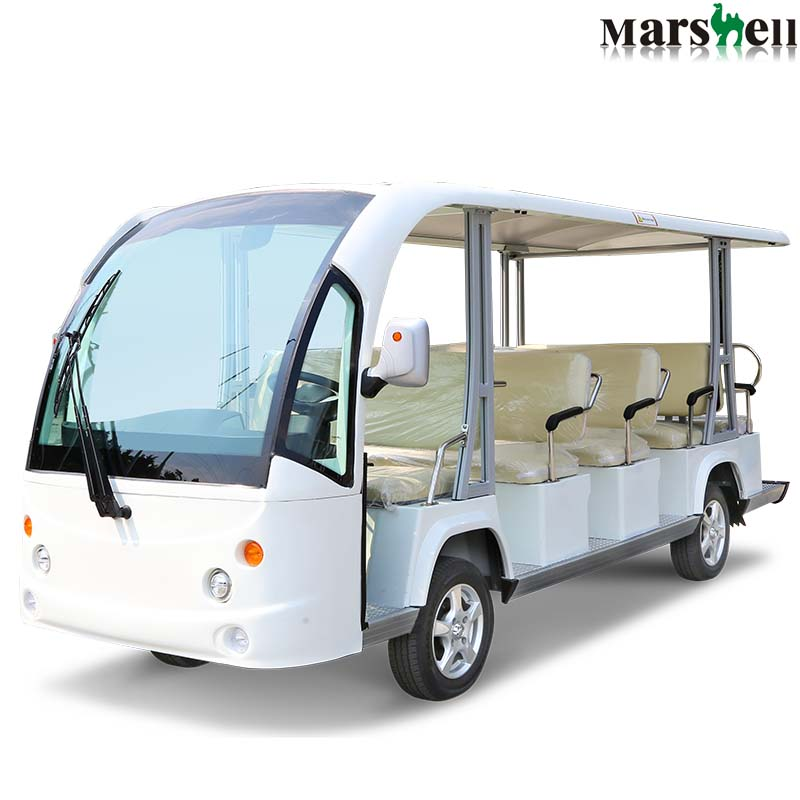

Environment Friendly Electric 14 Seats Passenger Car Sightseeing Car with CE Approved (DN-14F-9)
Customer case Environment Friendly Electric 14 Seats Passenger Car Sightseeing Car with CE Approved (DN-14F-9)electric sightseeing car features:1. Standard color: White. Attractive design and powerful in appearance, with strong carrying capacity and lower noise.2. Standard ......
Send Inquiry
Product Description
Customer case
Environment Friendly Electric 14 Seats Passenger Car Sightseeing Car with CE Approved (DN-14F-9)
electric sightseeing car features:
1. Standard color: White. Attractive design and powerful in appearance, with strong carrying capacity and lower noise.
2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure.
3. Small turning radius; and smart steering system; Whole style steel rear axle.
4. Can be easily modified to transportation vehicles.
5. CE certificate for whole carts.
6. Import main parts: Maintenance-free batteries and Curtis controller(From USA).Delta-Q chargers(From Canada).
7. Four wheels hydraulic braking system and independent parking brake.
Electric sightseeing car specifications:
Related Products
Marshell electric vehicle company profile:
Marshell was founded in 2002, it is a world-class electric vehicle designer and manufacturer in China. Our main products are golf cars, golf trolleys, sightseeing cars, e-scooter, utility vehicles, and so on. All items are CE-certified.
We have three facilities in Guangdong with 210000 square meters of workshops and 800 workers. Our daily production capacity is 100 units of big vehicles and 500 units of scooters.
Marshell has been recognized by ISO9001/ISO14001, all items are CE certified. Marshell is also the first one who got European EEC certificate in China.
Company Information
Please inquiry me for more details.Company Information
Environment Friendly Electric 14 Seats Passenger Car Sightseeing Car with CE Approved (DN-14F-9)
electric sightseeing car features:
1. Standard color: White. Attractive design and powerful in appearance, with strong carrying capacity and lower noise.
2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure.
3. Small turning radius; and smart steering system; Whole style steel rear axle.
4. Can be easily modified to transportation vehicles.
5. CE certificate for whole carts.
6. Import main parts: Maintenance-free batteries and Curtis controller(From USA).Delta-Q chargers(From Canada).
7. Four wheels hydraulic braking system and independent parking brake.
Electric sightseeing car specifications:
| Max. speed (km/h) | 28km/h | Wheelbase | 2660mm |
| Front wheel tread | 1240mm | Rear wheel tread | 1220mm |
| Battery | 6V 225AH*12pcs | Minimum turning radius (m) | 6.25m |
| Motor | 51V7.5KW AC motor | Brake range (m) | ≤5 |
| Controller | 72V400A | Max climbing ability (loaded) | 20% |
| Charger | 72V/25A | Overall dimensions(mm) | 4910*1550*2025mm |
| Suspension | front suspension:McPherson type independent suspension | Max. loading weight (kgs) | 1300 |
| Steering | Rack and pinion type with power steering | Ground clearance | 100 (mm) |
| Brake System | Four wheels hydraulic braking system | Chassis | Steel |
| Passenger capacity | 14 person | Quantity per Container | 1PCS/20FT;4PCS /40HQ |
| Range (loaded) (km) | 90-100km | rear suspension: | parallel leaf spring |
Related Products
Marshell electric vehicle company profile:
Marshell was founded in 2002, it is a world-class electric vehicle designer and manufacturer in China. Our main products are golf cars, golf trolleys, sightseeing cars, e-scooter, utility vehicles, and so on. All items are CE-certified.
We have three facilities in Guangdong with 210000 square meters of workshops and 800 workers. Our daily production capacity is 100 units of big vehicles and 500 units of scooters.
Marshell has been recognized by ISO9001/ISO14001, all items are CE certified. Marshell is also the first one who got European EEC certificate in China.
