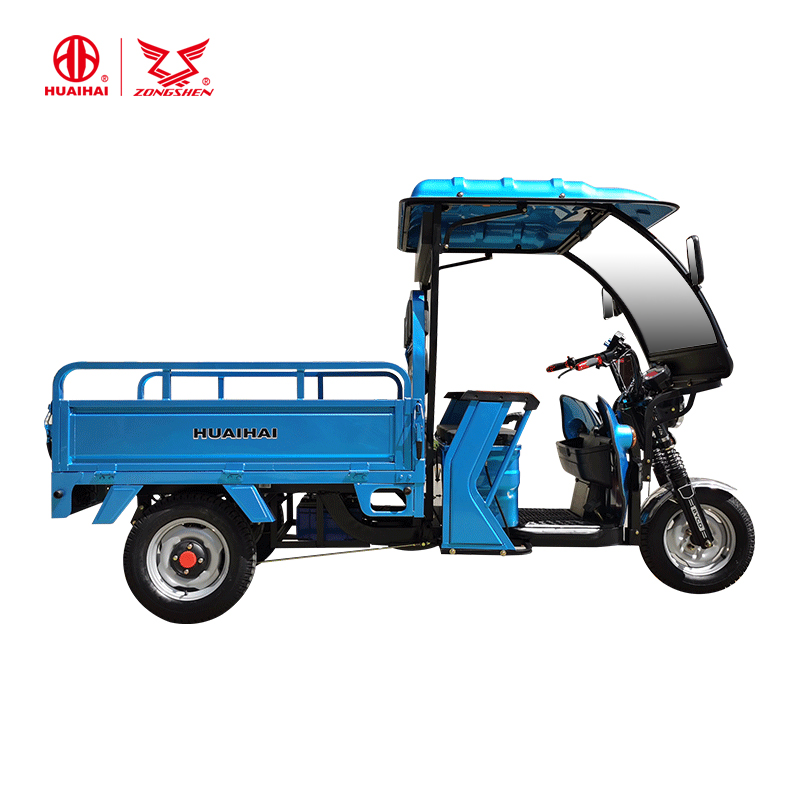

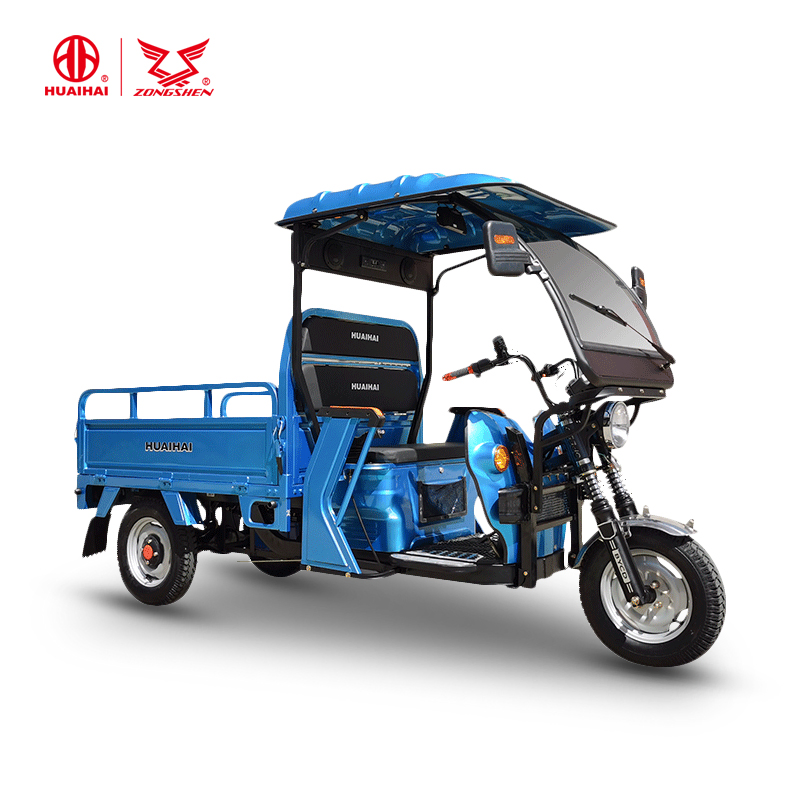

Wholesale 60V/120ah High Power Long Rang Adult Electric Cargo Tricycle From China
Overall Size2900*1080*1785mmCargo Box Type280mm (excluding handrail)/stiffener/low rail/foldable backrestCargo Box Sizecargo vehicle:1460*1000mmMotor Type60V DC brushless motor,55mm magnet steelRated Power1000WPeak Power2500WTransmitting ModeGear transmittedController24 tubesMax. Current50AFront Sus......
Send Inquiry
Product Description
| Overall Size | 2900*1080*1785mm |
| Cargo Box Type | 280mm (excluding handrail)/stiffener/low rail/foldable backrest |
| Cargo Box Size | cargo vehicle:1460*1000mm |
| Motor Type | 60V DC brushless motor,55mm magnet steel |
| Rated Power | 1000W |
| Peak Power | 2500W |
| Transmitting Mode | Gear transmitted |
| Controller | 24 tubes |
| Max. Current | 50A |
| Front Suspension | Duplex/φ43mm/hydraulic/outer spring |
| Rear Suspension Type | Leaf spring + spring absorber dependent suspension |
| Rear Shock Absorber | Leaf spring + spring absorber |
| Rear Axle | Taper Rear Axle/1:10/diameter 60mm/thickness 4mm/power gearbox |
| Min. Turning Radius | 6500mm |
| Min. Ground Clearance | 160mm |
| Leaf Spring | 6pcs leaf spring/45mm/thickness 5.5mm |
| Tyre (F/R) | 4.0-12 |
| Brake Type | Mechanical brake |
| Brake Mode | Drum / drum |
| Max. Speed | 30km/h |
| Battery | 60V/120Ah |
| Mileage Per Charge | 100km |
| Charging Time | 8 hours |
| Curb Weight | 260kg |
| Rated Gross Weight | Vehicle weight + battery/fuel + driver + rated load 700kg |
| Max. Designed Gross Weight | Vehicle weight + battery/fuel+ driver + max. load 800kg |
| 40HQ Container Packing Qty. | CKD 55 sets |

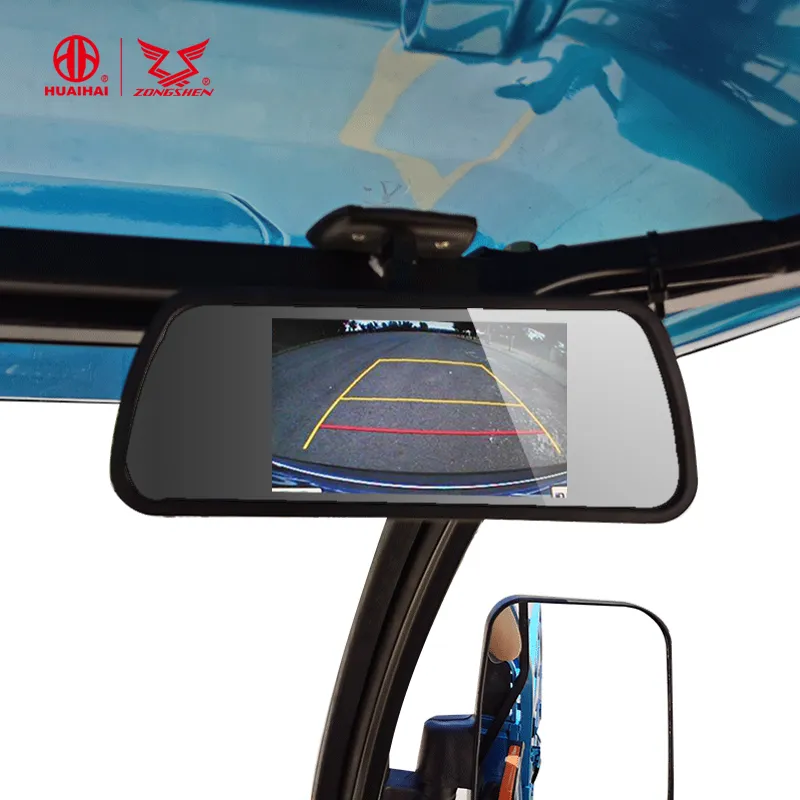

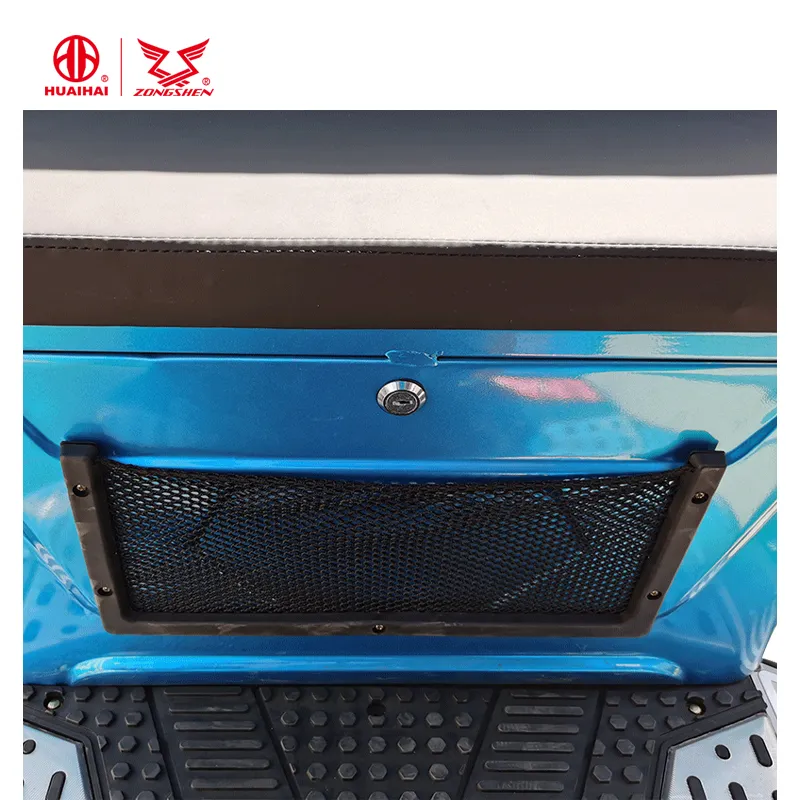

| Features | 1.60V1000W differential motor, integrated rear axle, 24-tube controller 2.3.50-12 tyre, three-wheel interchangeable, iron rim 3.Front φ43 outer spring hydraulic shock absorption, rear 6 leaf spring 4.Front: 130 drum brake; rear:160 drum brake 5.Dual track MP3 radio, integrated central rearview mirror in driver's area + reading light, reading light in passenger area; switching wiper + boneless wiper arm; anti-theft alarm; USB mobile phone charger6.File pocket at driving seat & cup holder 7.Plastic storage box at the windshield 8.Thickened tube material for frame with strong loading capacity |
FAQ1. Q:Why choose us?

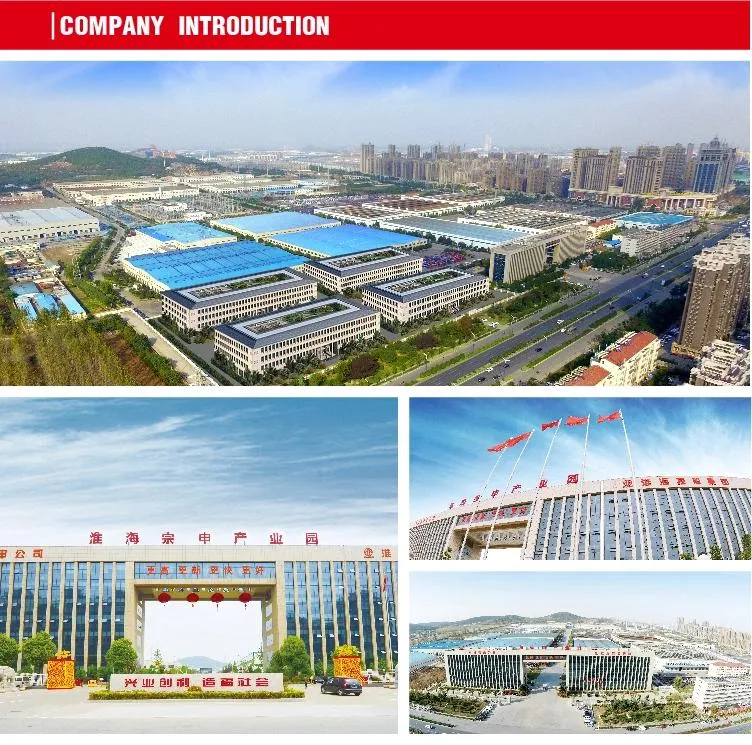

A: We are original manufacture with more than 40 years experience. Our company covers an area of 1.5 square kilometers, owns 10000 staff, 30% of who owns college degree or above. The annual output has over 200,0000 units.
2. Q: Where is your company located? How can I visit there?
A: Our factory is located in Xuzhou City, Jiangsu Province, China. Welcome to visit us. The International airport is shanghai Hongqiao and domestic airport is Xuzhou Guanyin airport. It takes three hours to take high speed train from Shanghai(Beijing) to Xuzhou East Station.
3: What is your main product?
A: Electric tricycle and spare parts, battery, Electric bicycle, electric scooter, motor tricycle and auto car.
4. Q: What's the MOQ?
A: Our MOQ is 50pcs. Sample and LCL shipment accepted, cost higher.
5. Q: What is the payment terms?
A: T/T, L/C at sight.
6. Q: What's the delivery time?
A: It will take about 15-20 days to finish an order. But the exact time is according to actual situation.
7. Where is your sales market?
A: We have exported to India, Bangladesh, Middle east, Eastern Europe, Souther America, Phillipines, Thiland and other 65 countries.
8: What is your shipping terms?
A: EXW, FOB, CNF, CIF.
9. Q: What certificate do you have?
A: We have CCC,ISO14000, OHSA18001 SGS, ISO9001 etc. Also we can apply any certificate if you need if the qty is OK.
10. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. are very welcome.

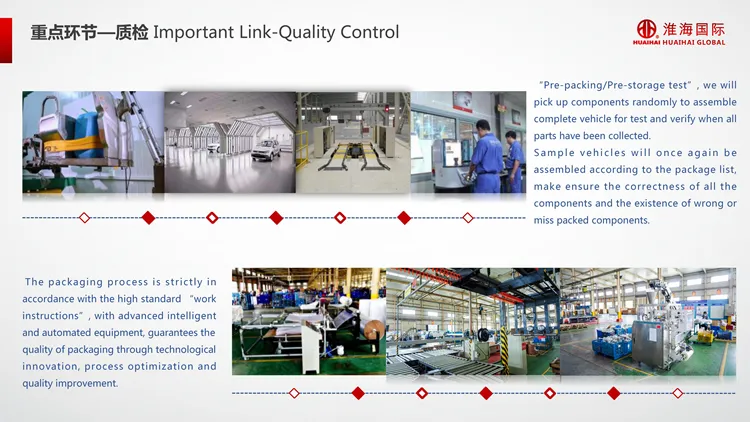

11. Q: How does your factory carry out quality control?
A: We attach great importance to quality control.Every part of our products has its own QC.
