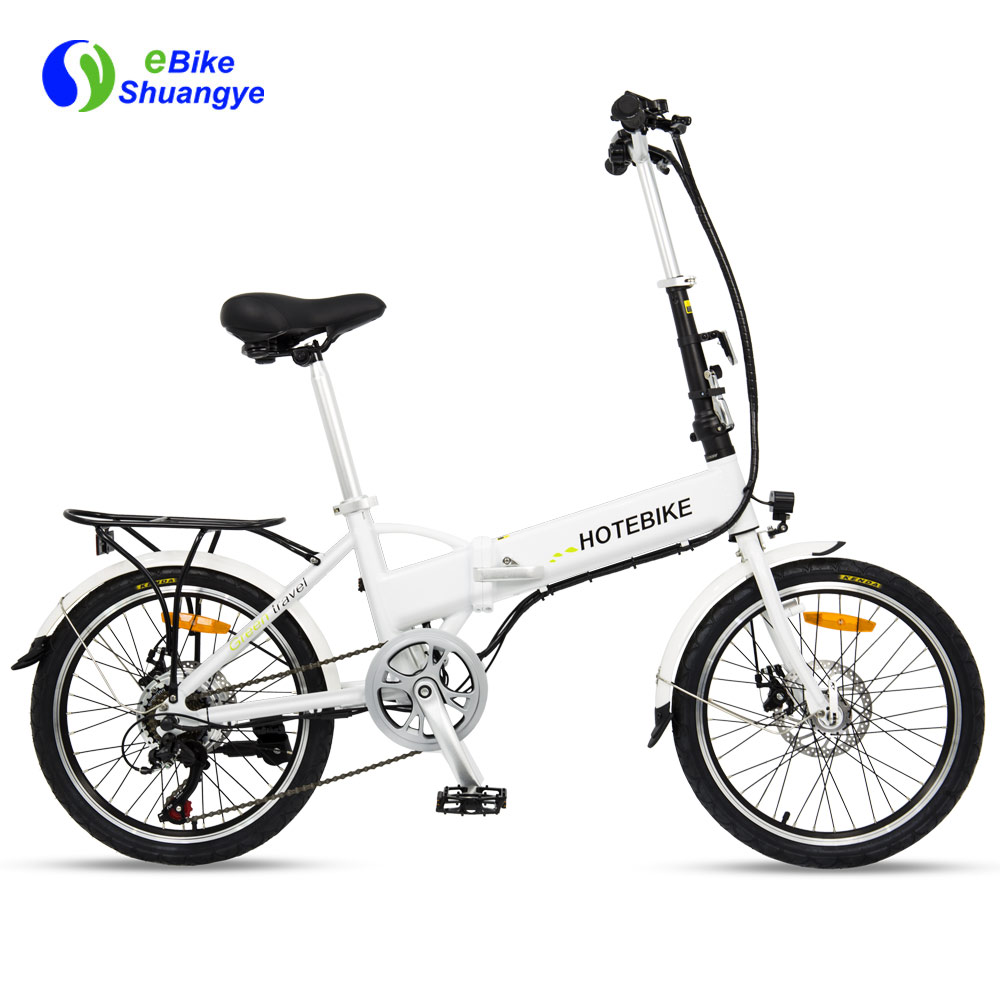

Shuangye Electric Motor Bike with 250W Brushless Mortor Folding Bike
Shuangye Electric Motor Bike with 250W Brushless Mortor Folding BikeA1 specification Modelshuangye A1 20 inch folding electric bikeMotormini high speed brushless gears36V250W 25KM/H for European36V350W 30KM/H for USAPAS1:1 intelligent pedal assistant system/only pedal assistant For European,JAPA......
Send Inquiry
Product Description
Shuangye Electric Motor Bike with 250W Brushless Mortor Folding Bike
A1 specification
Detailed Images
high profile---7 speeds.
color yellow.(white/black/red/blue/green you can custom)

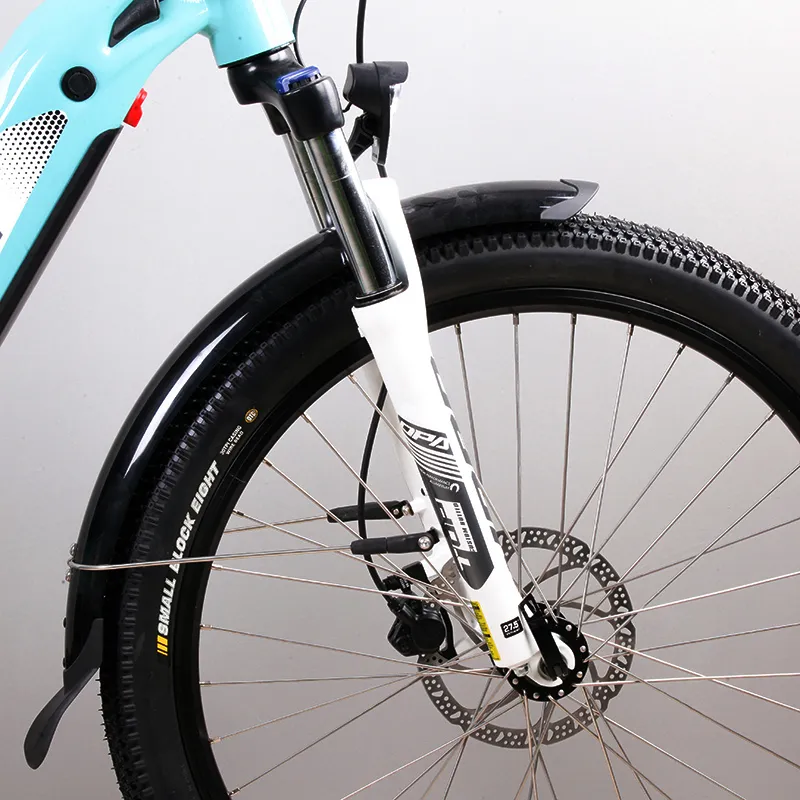

suspension fork.
magnesium intergrated wheel you can custom
Standard configuration---single speed
hidden battery
20 inch tire
aluminum alloy frame
comfortable saddle
FAQ
1. What's the minimum ebike order MOQ?
ebike A1 MOQ 10pc
2. How long is delivery time?
2 days to 30 days, depend on model and quantity
3. Can I order spare parts?
Yes, we have all parts list available for our models
4. How about warranty ?
alloy frame 36 months, motor 24 months, lithium battery 15 months, controller 15 months.
5. Is sample available?
Yes, sample order is acceptable, but there will be extra cost.
6. Can i choose the colors ?
Yes, there would be extra cost.
7. What certificate do you have for electric bicycle?
Every electric bicycle has CE/EN15194 certificate for EU
8. Could I use my own LOGO or design on goods?
Yes. When order quantity is big, you can use your own LOGO or your language manual etc.
Company information
As professional manufacturer engaged in the research, development, production, sale and service,we are committed to manufacturing electric bike, electric bike lithium battery, charger, lithium battery BMS and electric bike controller.
1. Good knowledge on different market can meet special requirements.

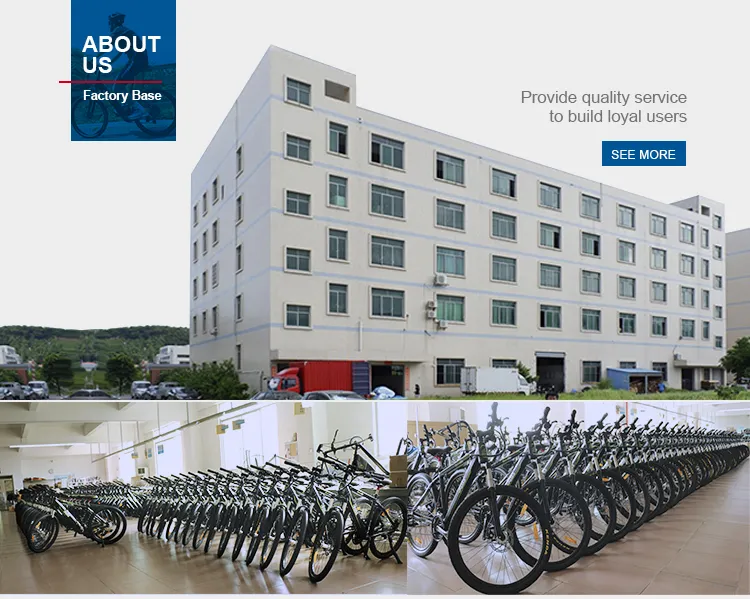

2. Real manufacturer with our own factory located in zhuhai,GuangDong,China
3. Strong professional technical team ensure to produce the top quality electric bike.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on manufacture field with 7 years' product electric bike battery.
Packing&Shipping
1.one ebike in a carton.
2.one electric bike packed in thick carton with PE-foam protect your bike not damaged
3.20" container:2.3*2.3*5.8.(40" container you can use,too.about 300 pieces)
Our service
our company zhuhai shuangye produce electric bike,ebike kit,ebike battery more than 8 years.
enjoy high repution in our industries.
the more about us you can visit our website: http://zhsydz.en.made-in-china.com
or leave a message for us,we will reply you in first time.
A1 specification
| Model | shuangye A1 20 inch folding electric bike |

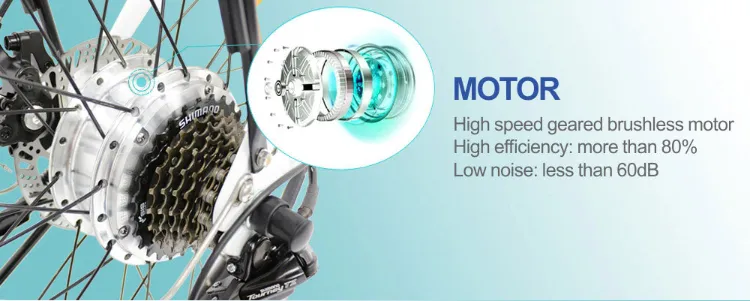

| Motor | mini high speed brushless gears |
| 36V250W 25KM/H for European | |
| 36V350W 30KM/H for USA | |
| PAS | 1:1 intelligent pedal assistant system/only pedal assistant For European,JAPAN |
| 1:1 intelligent pedal assistant and throttle with switcht model | |
| Battery | 36V9Ah or 36V10.4AH Lithium battery |
| Range | 1:1 PAS mode 40-60KM |
| Controller | Intelligent brushless 36V250W |
| Charger | AC100V-240V,42V2A |
| Charging time | 6-8 hours |
| Max speed | 25km/h(EU),30km/h(USA&Canada) |
| Loading | 100kg |
| Frame | Aluminum alloy and foldable |
| Tyre | 20*1.75 |
| Rim | Aluminum alloy Rim or Double Rim |
| Front fork | steel |
| Front brake | V brake or 160disc brake |
| Rear brake | Electric brake with motor lack |
| Derailleur | No gears or 7 gears |
| Handle bar | Foldable and adjustable |
| Brake lever | Aluminum,cut-off when braking |
| Chain | Rust resistant chain |
| Chain wheel | Steel 16T |
| Saddle | Comfortable saddle |

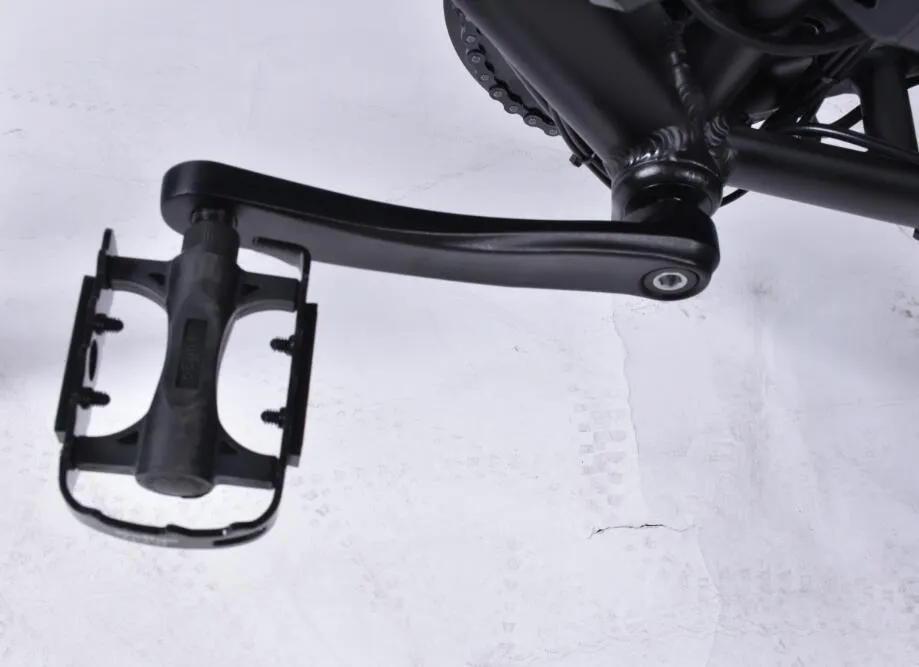

| Pedal | Steel 40T*165mm |

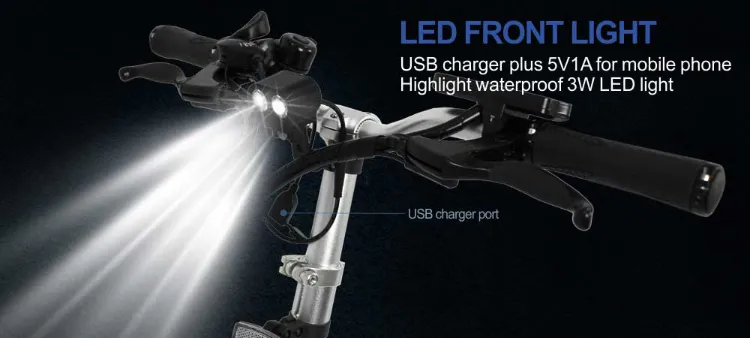

| Front headlight | LED front headlight and horn |
| Certification | CE EN15194 |
| Weight | N.W:21kgs,G.W:26kgs |
| Package size | 87*67*38cm |
| 20'GP container | 118 PCS(5.69*2.34*2.18) |
| warranty | (Battery,motor,controller,charger) 2 years Battery first year capacity > 80%,second year capacity >65% |
Detailed Images
high profile---7 speeds.
color yellow.(white/black/red/blue/green you can custom)
suspension fork.
magnesium intergrated wheel you can custom
Standard configuration---single speed

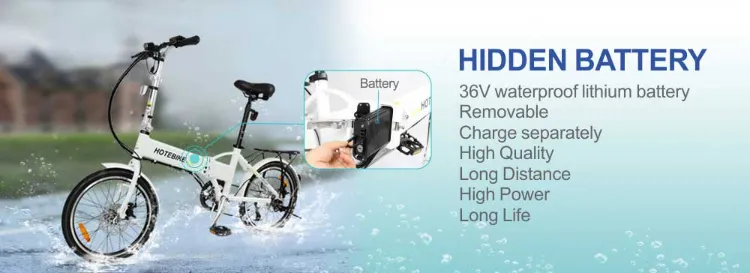

hidden battery
20 inch tire
aluminum alloy frame
comfortable saddle
FAQ
1. What's the minimum ebike order MOQ?
ebike A1 MOQ 10pc
2. How long is delivery time?
2 days to 30 days, depend on model and quantity
3. Can I order spare parts?
Yes, we have all parts list available for our models
4. How about warranty ?
alloy frame 36 months, motor 24 months, lithium battery 15 months, controller 15 months.
5. Is sample available?
Yes, sample order is acceptable, but there will be extra cost.
6. Can i choose the colors ?
Yes, there would be extra cost.
7. What certificate do you have for electric bicycle?
Every electric bicycle has CE/EN15194 certificate for EU
8. Could I use my own LOGO or design on goods?
Yes. When order quantity is big, you can use your own LOGO or your language manual etc.
Company information
As professional manufacturer engaged in the research, development, production, sale and service,we are committed to manufacturing electric bike, electric bike lithium battery, charger, lithium battery BMS and electric bike controller.
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own factory located in zhuhai,GuangDong,China
3. Strong professional technical team ensure to produce the top quality electric bike.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on manufacture field with 7 years' product electric bike battery.
Packing&Shipping
1.one ebike in a carton.
2.one electric bike packed in thick carton with PE-foam protect your bike not damaged
3.20" container:2.3*2.3*5.8.(40" container you can use,too.about 300 pieces)
Our service
our company zhuhai shuangye produce electric bike,ebike kit,ebike battery more than 8 years.
enjoy high repution in our industries.
the more about us you can visit our website: http://zhsydz.en.made-in-china.com
or leave a message for us,we will reply you in first time.
